Description
Working thickness | 8-180mm | Feeding motor power | 1HP 1:10 |
Working width | 630mm | Lifting motor power | 1/2HP 1:20 |
Min.Working length | 220mm | Dust exit dia | Top: φ120mm Bottom: φ100mm |
Max.Cutting depth | Upper and lower knife 4mm | Voltage | 380v |
Cutting spindle dia | φ100mm | Overall szie | 1100×1355×1350mm |
Cutting spindle speed | 6000r/min | Packing size | 1150×1380×1480mm |
Feeding speed | 5-15m/min | Net weight | 1060kg |
Upper cutting spindle motor power | 10HP | Mechanical packing weight | 1120kg |
Bottom cutting spindle motor power | 5.5HP |
Products Description
Standard re-cut spiral cutter

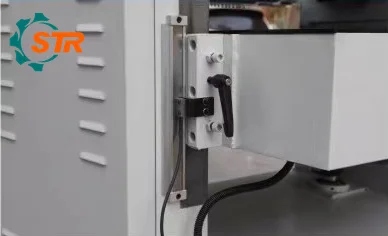

Work table rasterrulerpositioning,accurate size

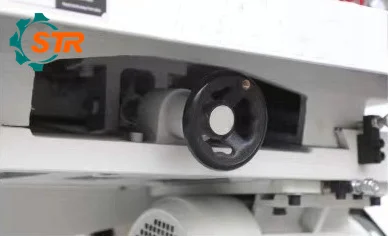

The worktable is adjusted manualy before cutting
1 Cast iron bed with good shock absorption and stability is machined by CNC machining center to provide a good foundation for cutter shaft and feed.

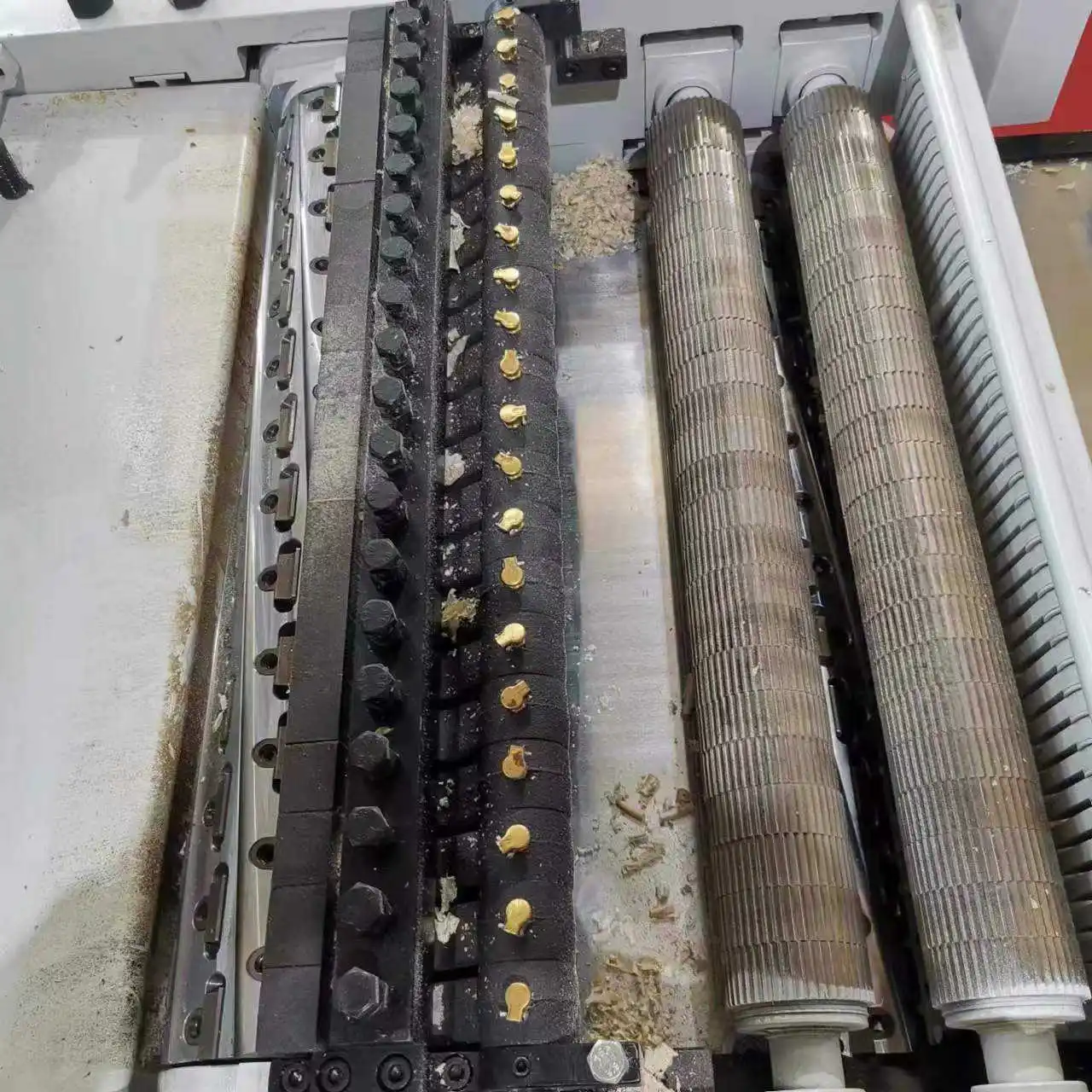

2 Standard carbide helical shaft,high-precision imported bearings for the machine to provide a very healthy heart;
3 The use of crawler-type elastic pressure claw (with lifting function) according to the thickness of the wood,the degree of bending choose elastic pressure claw feeding distance, the workpiece processing accuracy is greatly improved,feeding powerful;
4 Machine tool knife axis and the pressure roller and the smooth feeding mechanism,equipped with manual fine-tuning and motorized mechanism,so that positioning fast and accurate.Pressure planing part of the upper and Iower feed roller linkage feeding, strong thrust balance;
5 The use of imported electrical components, so that the whole control sensitive and safe;
6 Taiwan imported products equipped with digital display device, the operating panel can be directly on the processing thickness,accuracy up to 0.1mm,standard speed control feeding;

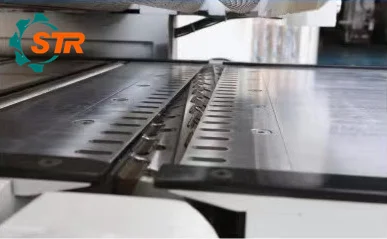

7 Countertops hard chrome plated special treatment, wear-resistant,smooth.
