Description
Model specifications MB457 | Working thickness | 10-200mm | ||
Feeding motor power | 3HP (variable frequency) | Working width | 25-457mm | |
Lifing motor power | 3/4HP | Min.Working length | 260mm | |
Dust exit dia | φ150mm | Max.Cutting depth | Upper and lower knife 4mm | |
Voltage | 380v | Cutting spindle dia | φ101mm | |
Overall szie | 2520×1030×1630mm | Cutting spindle speed | 5800r/min | |
Packing size | 2620×1130×1780mm | Feeding speed | 8-18m/min | |
Net weight | 2380kg | Upper cutting spindle motor power | 10HP | |
Mechanical packing weight | 2530kg | Bottom cutting spindle motor power | 7.5HP | |
Cast iron bed with good shock absorption and stability is machined by CNC machining center to provide a good foundation for cutter shaft and feed. |

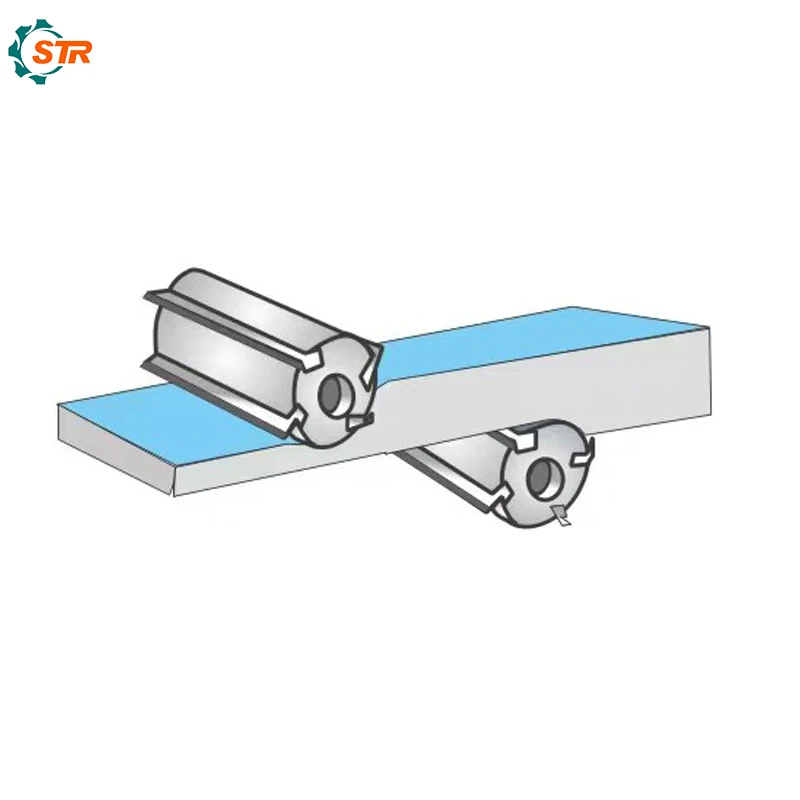

Standard carbide helical shaft,high-precision imported bearings for the machine to provide a very healthy heart; |
The use of crawler-type elastic pressure claw (with lifting function) according to the thickness of the wood,the degree of bending choose elastic pressure claw feeding distance,the workpiece processing accuracy is greatly improved,feeding powerful; |
Machine tool knife axis and the pressure roller and the smooth feeding mechanism,equipped with manual fine-tuning and motorized mechanism,so that positioning fast and accurate.Pressure planing balance; part of the upper and lower feed roller linkage feeding,strong thrust |
The use of imported electrical components, so that the whole control sensitive and safe; |
Taiwan imported products equipped with digital display device, the operating panel can be directly on the processing thickness,accuracy up to 0.1mm,standard speed control feeding; |
Countertops hard chrome plated special treatment, wear-resistant, smooth. |

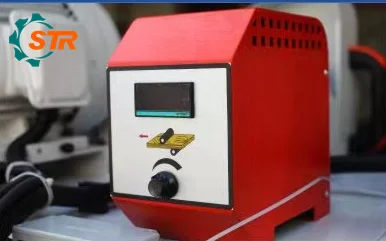

Feeding frequency converter

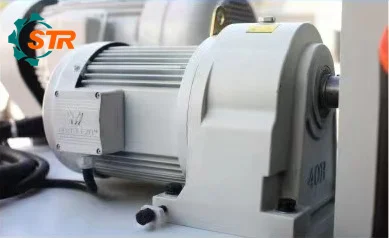

Hardened geargearreducer

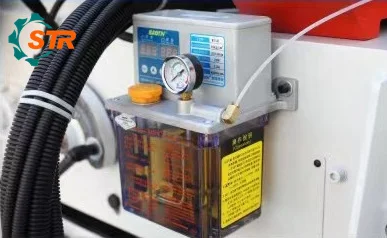

Industrialgrade oilinjector
**2. Robust Heavy-Duty Double Side Planer Machine for Woodworking**

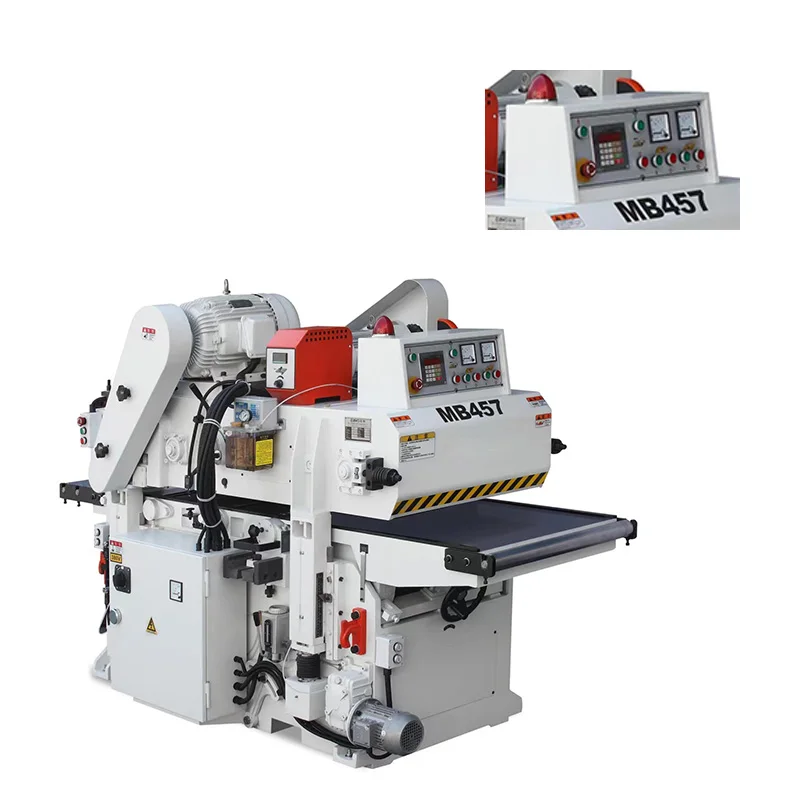

The MB457 stands as a testament to robustness and durability in woodworking machinery. Powered by a 10HP upper cutting spindle motor and a 7.5HP bottom cutting spindle motor, it effortlessly handles the toughest wood surfaces. Its cutting spindle diameter of φ101mm and spindle speed of 5800r/min ensure precise and efficient cutting. With an overall size of 2520×1030×1630mm and a net weight of 2380kg, it offers stability and reliability in operation.
