Description
TECHNICAL FEATURES:
-Super-strength steel body.
-2 HWM knives (7,65x12x1,5mm - Z2).
-4 HWM knives (18x18x1,5mm - Z4).
-4 HWM knives (14x14x1,2mm - V4).
-Tools for manual feed (MAN).
-Pins for the automatic positioning of the knives.
SUPPLIED IN A SOLID PLASTIC BOX.

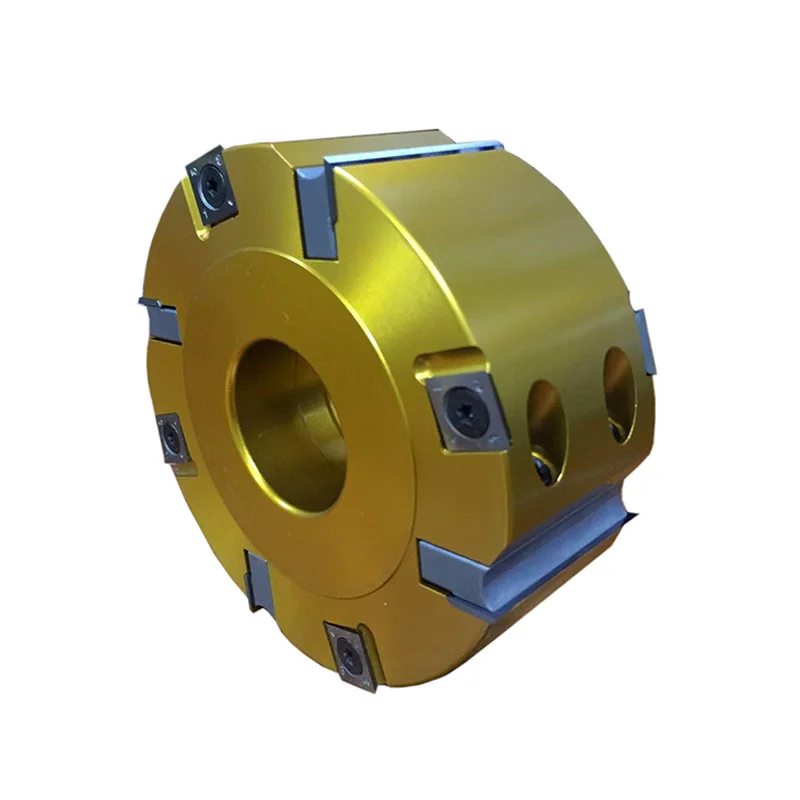

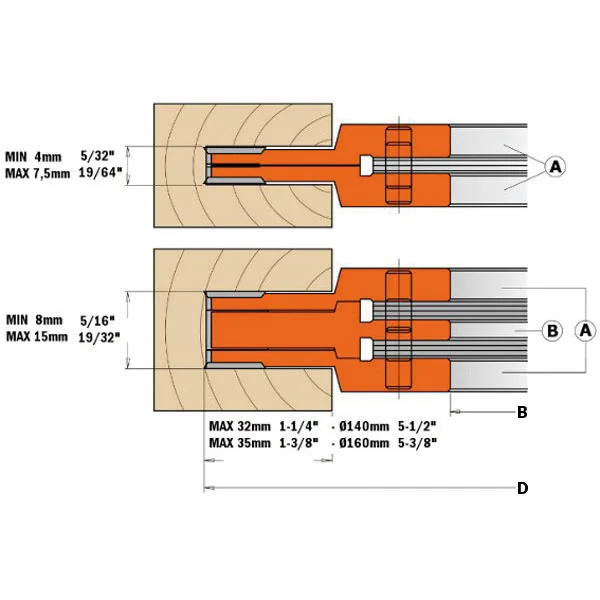

These cutter heads are the ideal tools to create precision slots and grooves on material from 4mm (5/32") to 15mm (19/32") deep. These sets include:
-2 cutter heads type (A) Z4 + V4.
-1 cutter head type (B) Z2.
-12 spacer rings from 0,1 to 2mm.
For use on your spindle moulder machines, double-end tenoner and shaper machines. Perfect grooving on all materials, but ideal on solid wood, plywood and laminated panels.
-2 cutter heads type (A) Z4 + V4.
-1 cutter head type (B) Z2.
-12 spacer rings from 0,1 to 2mm.
For use on your spindle moulder machines, double-end tenoner and shaper machines. Perfect grooving on all materials, but ideal on solid wood, plywood and laminated panels.
Specification:
| D | B | Z | Spurs | RPM | L |
| 100 | 19,05 | 2 | 4 | 7500~12500 | 51 |
| 100 | 30 | 2 | 4 | 7500~12500 | 51 |
| 100 | 31,75 | 2 | 4 | 7500~12500 | 51 |
| 100 | 35 | 2 | 4 | 7500~12500 | 51 |
| 125 | 40 | 2 | 4 | 6100~10000 | 51 |
| 125 | 50 | 2 | 4 | 6100~10000 | 51 |
Size can be customzied, contact us for more information !
