Description
1. Adopt high-performance industrial wireless module;
2. Support (WCDMA/CDMA/TD-SCDMA) and 4G (FDD-LTE/TDD-LTE)
3. Adopt metal shell with protection grade of IP30;
4. Standard RJ45 (Ethernet) interface built-in lightning protection 3000V (non
standard configuration needs to be customized);
5, wide voltage current input: DC7-35V/3A;
6. Support 2-channel analog input/control output with photoelectric isolation,
which is applied to vehicle diagnosis and alarm, control vehicle flameout, etc.
(Non-standard configuration needs to be customized);
7. Software and hardware atchdog anti-crash design, after the router is
disconnected, it will automatically power off and restart to ensure stable and
reliable operation of the equipment;
8, automatic detection of network disconnection, automatic
restart of dialing failure, timing restart and other functions;
9. Serial port transparent transmission function. The command control mode can be
entered through the serial port to control the router and ancillary equipment;
10. Support multiple DDNS dynamic domain name services;
11. Port mapping, DMZ host and other functions;
12. Support VPN (PPTP Client, L2TP Client);
13. Optional GNSS positioning module, supporting RTK technology, and supporting multiple satellite
systems

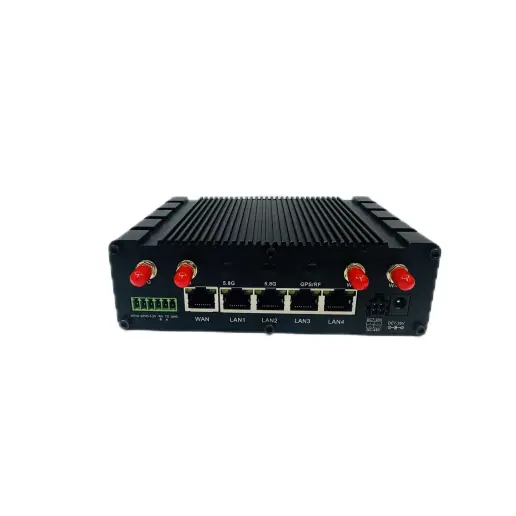

Side A
1. WAN-LAN4: RJ45 interface The WAN can only be used as a WAN port in standard router mode.
2. DC power interface/terminal power supply: 2.1mm round head power interface, positive inside and negative outside, voltage input:
7-35 V. Input power greater than 10 W is recommended.
3. RS232/RS485 serial interface: 4 Pin terminal female Edg 3.5mm.
4. GPIO interface: support 2-channel analog input/control output with hotoelectric isolation (additional customization is required)

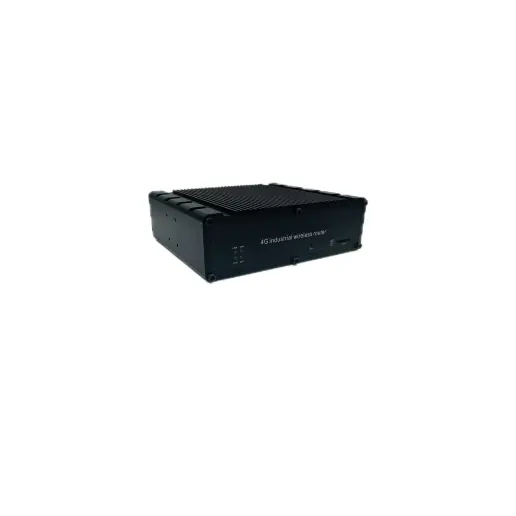

Side B
1. Indicator light
WiFi light: It is always on after being powered on, and flashes when WiFi is working normally. SYS lamp: it is always on after
power on, and it flashes slowly when the system is started
normally. Flash when the reset key is pressed. LINK light: In 4G or WIFI bridging mode, it flashes when dialing (bridging AP), and it
is always on after successful networking. VPN light: always on when using VPN;
2. R (reset) key: press this key for 5 seconds in the power-on state, the SYS light will flash, and then restart, and the reset is
successful.
3. SIM card slot: snap-in SIM card holder. If you need to take out the SIM card, gently push the SIM card.
