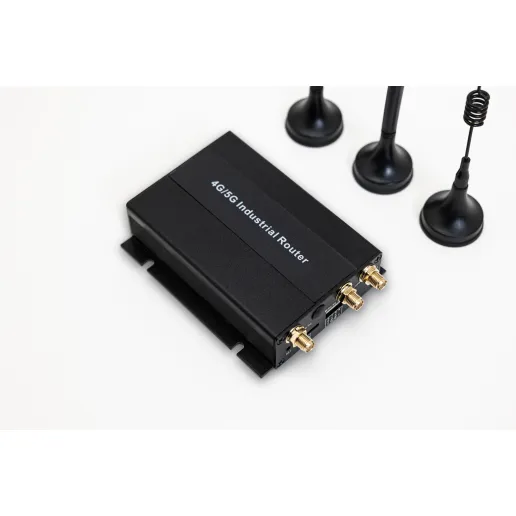

Description
1. Ultra-small volume, length and width are only 97 mm × 78.2 mm × 25.1 mm;
2, industrial protection interface, easy to install;
3. Adopt metal shell with protection grade of IP30;
4. Wired + wireless router solution;
5. Support 802.11 B/G/n protocol, up to 300Mbps;
6. Wired support 1 WAN or 1 LAN, 10M/100M adaptive;
7. Software and hardware watchdog anti-crash design, after the router is disconnected, it will automatically power off and restart to ensure stable and reliable operation of the equipment;
8. automatic detection of network disconnection, automatic restart of dialing failure, timing restart and other functions;
9. Serial port transparent transmission function. The command control mode can be entered through the serial port to control the router and ancillary equipment;
10. Port mapping, DMZ host and other functions;
11. Support VPN (PPTP Client, L2TP Client);
12. Optional GNSS positioning module, supporting RTK technology and multiple satellite systems (GPS, GLONASS, Beidou, WAAS, EGNOS, MSAS, GAGAN) hybrid engine)
Side A
1. LAN1/LAN2: RJ45 interface; In standard router mode, LAN1 can be used as a WAN port.
2. DC power interface: 2.1mm round head power interface, positive inside and negative outside, voltage input 12V-24V.
3. Indicator light: LAN1/LAN2: wired network access indicator light, which is always on when the connection is normal and flashes when there is data traffic. SYS lamp: it is always on after power on, and it flashes slowly when the system is started normally. Flash when the reset key is pressed. LINK light: In 4G/5G or WIFI bridging mode, it flashes when dialing (bridging AP), and it is always on after successful networking.

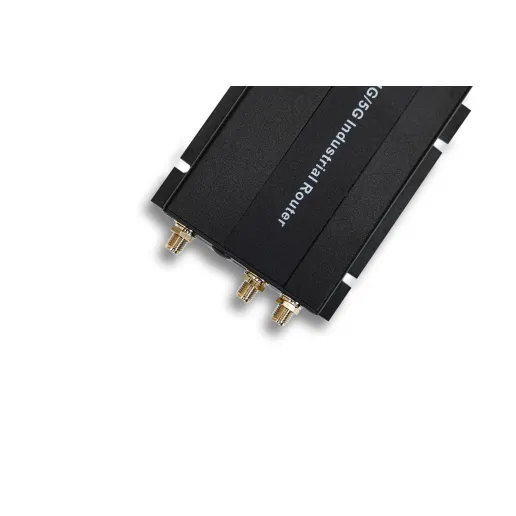

Side B
1. 4G/5G/2.4G-WIFI antenna interface: SMA external rotation and internal hole interface.
2. R (reset) key: press this key for 5 seconds in the power-on state, the SYS light will flash quickly, and then restart, and the reset is successful.
3. RS232/RS485 serial interface: 2.0m 4 PIN connector.
4. SIM card slot: snap-in SIM card holder. If you need to take out the SIM card, gently push the SIM card.
