Description
 |
 |
 |
 |

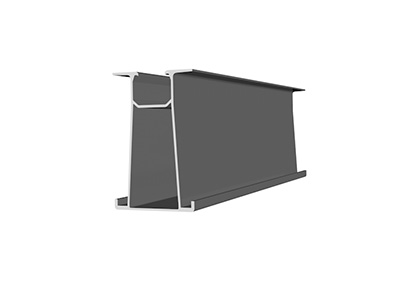

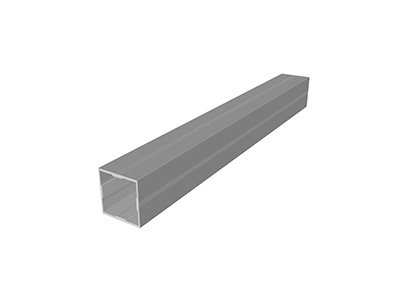

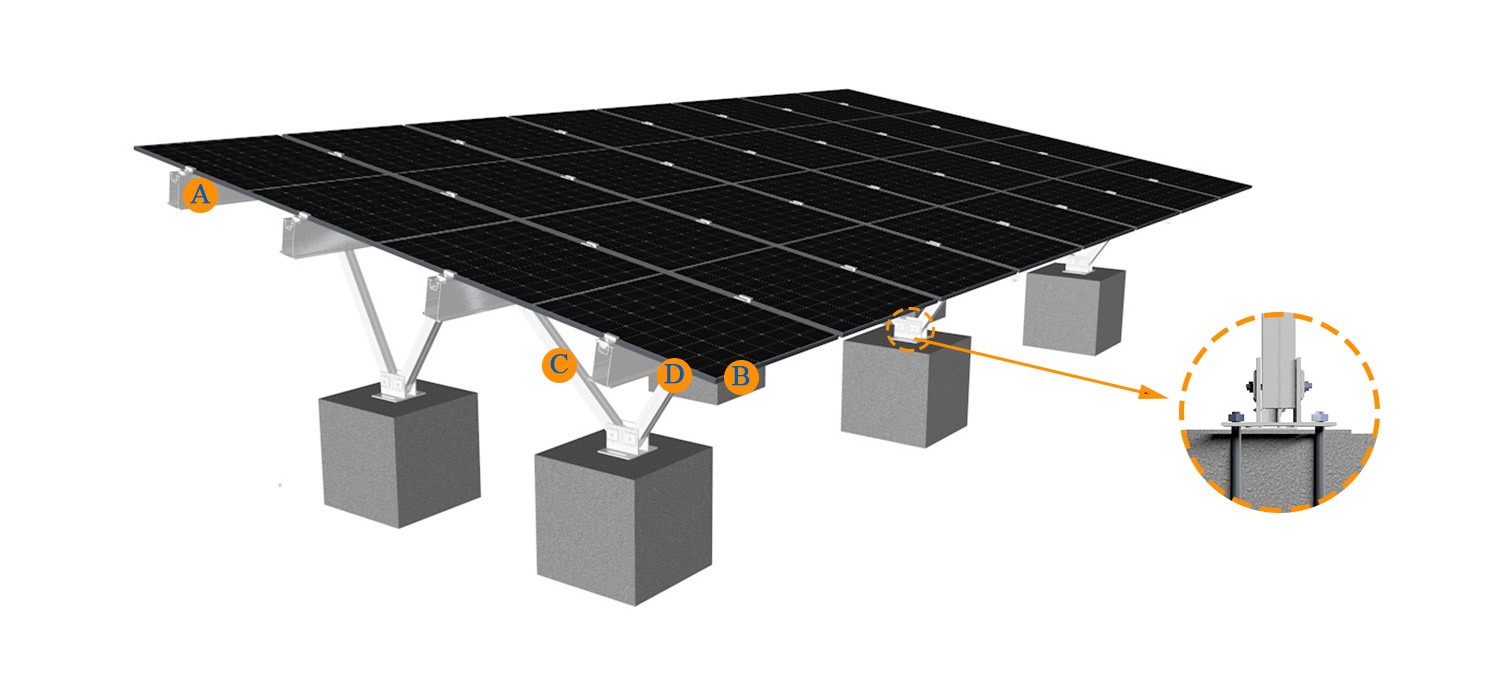

| A. Rail | B. Beam | C. Pile | D. H kit |
 |
 |
 |
 |

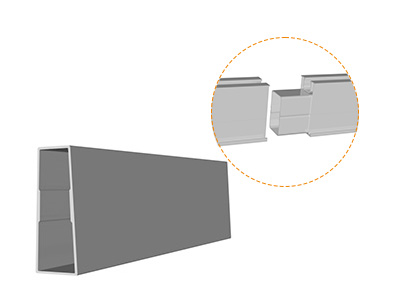

| Rail Splice | Bases | Solar panel clamps | Ground screw also available |
| Technical Datashet |
| Installtation site | Open field |
| Main material | AL6005-T5 |
| Tilt angle | 5-45deg |
| Solar panel | Framed or frameless |
| Fasterner material | High-grade steel SUS304 |
| Color | Natural |
| Treatment | Anodizing |
| Panel orientation | Landscape or portrait |
| Max wind load | Up to 60m/s |
| Max snow load | Up to 1.0kN/m2 |
| Service life | More than 25 years |
| Warranty | 12 years |
| Features & Benefits |
> Suitable for different areas, such as low-cost concretes and high wind and heavy snow areas.
> The beams and legs are pre-assembled in the factory to save on-site labor cost and time.
> The system is made of recyclable AL6005-T5, and can work more than 25 years.
> Ground screw foundation and concrete foundation can be acceptable.

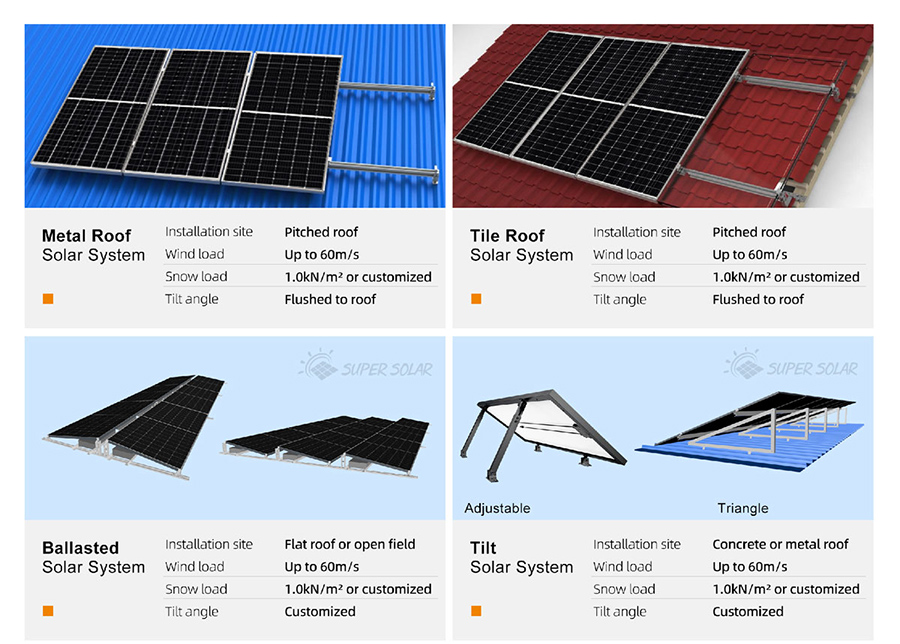

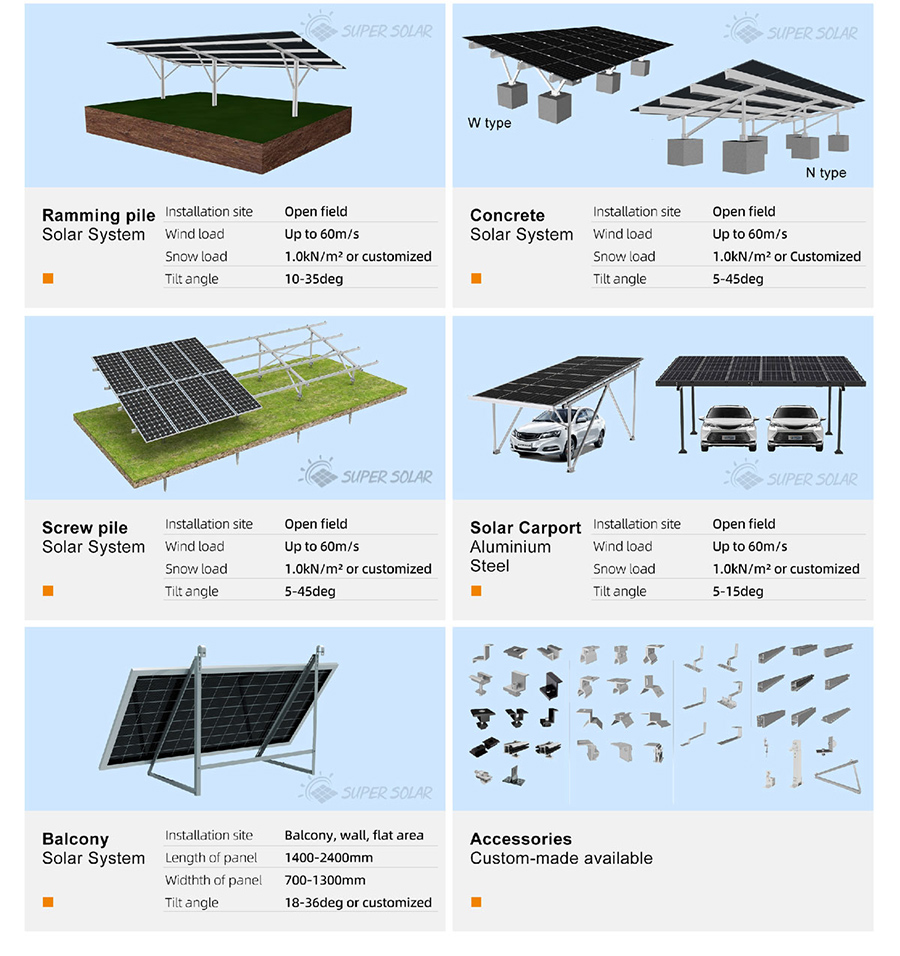

| Solar Mounting System Solutions |
