Products Description

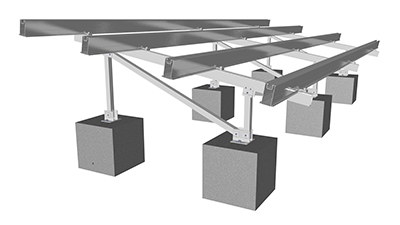

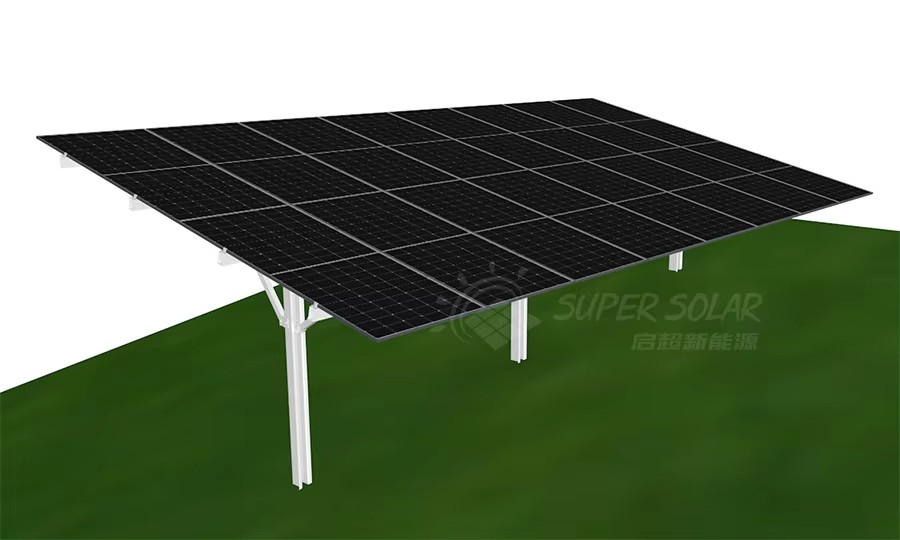

▶Mounting system developed for large commercial and utility solar projects on open areas, suitable for both framed and frameless modules.
![ground mounted solar arrays]()
▶Long service life of minimum 25 years enabled due to the high-quality materials.
▶The components are made of aluminum alloy with good mechanical characteristics opposite to the traditional ground racks made of hot dip galvanized steel.
Economical and practical
The beams and legs are pre-assembled in the factory to save on-site labor cost and time.
Compatible and reliable
The system is made of recyclable AL6005-T5, and can work more than 25 years.
 |
 |
 |

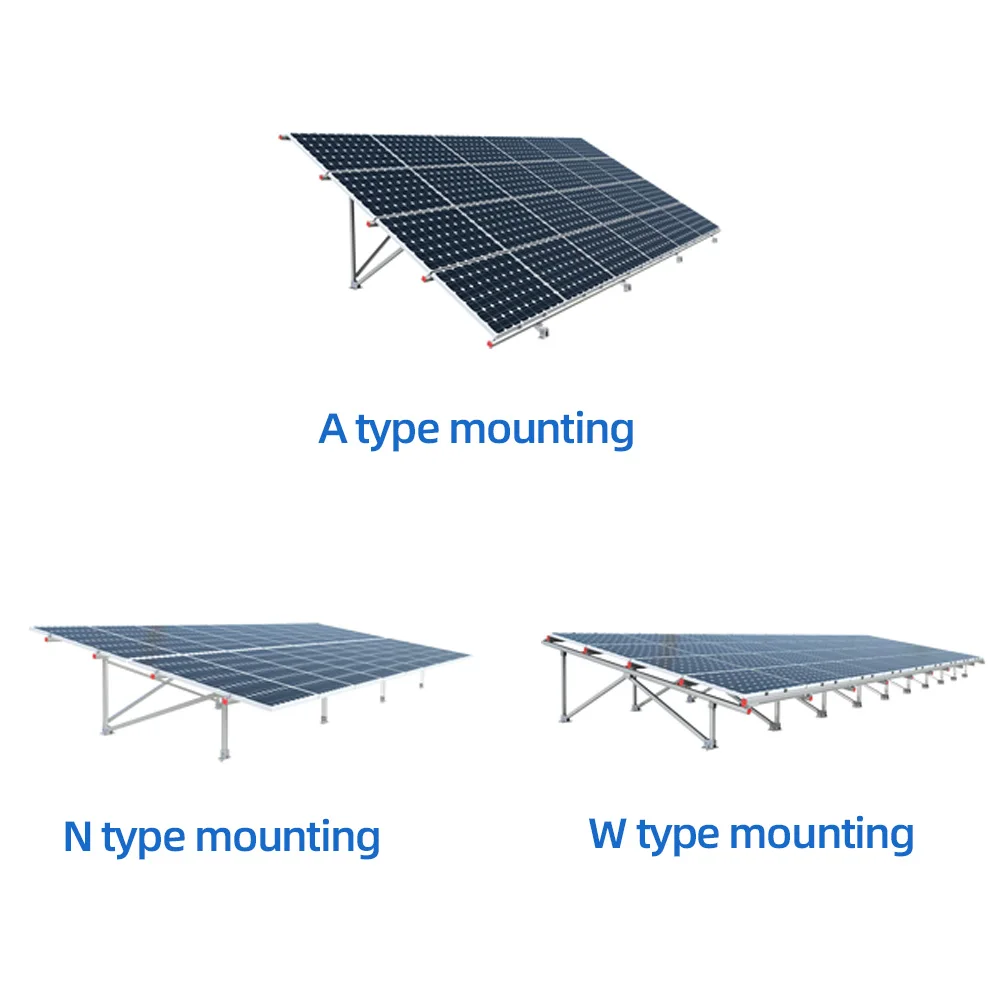

| N type mounting | A type mounting | W type mounting |
| Application | Open field |
| Material | AL 6005-T5 |
| Panel Type | Framed & Frameless |
| Wind Load | ≤60m/s |
| Snow Load | 1KN/m² |
| Panel Orientation | Landscape/Portrait |
| Tilt Angle | 5°~45° |
| Certificate | ISO/CE |
| Warranty | 12 Years |
| Service life | More than 25 years |
 |
 |
|

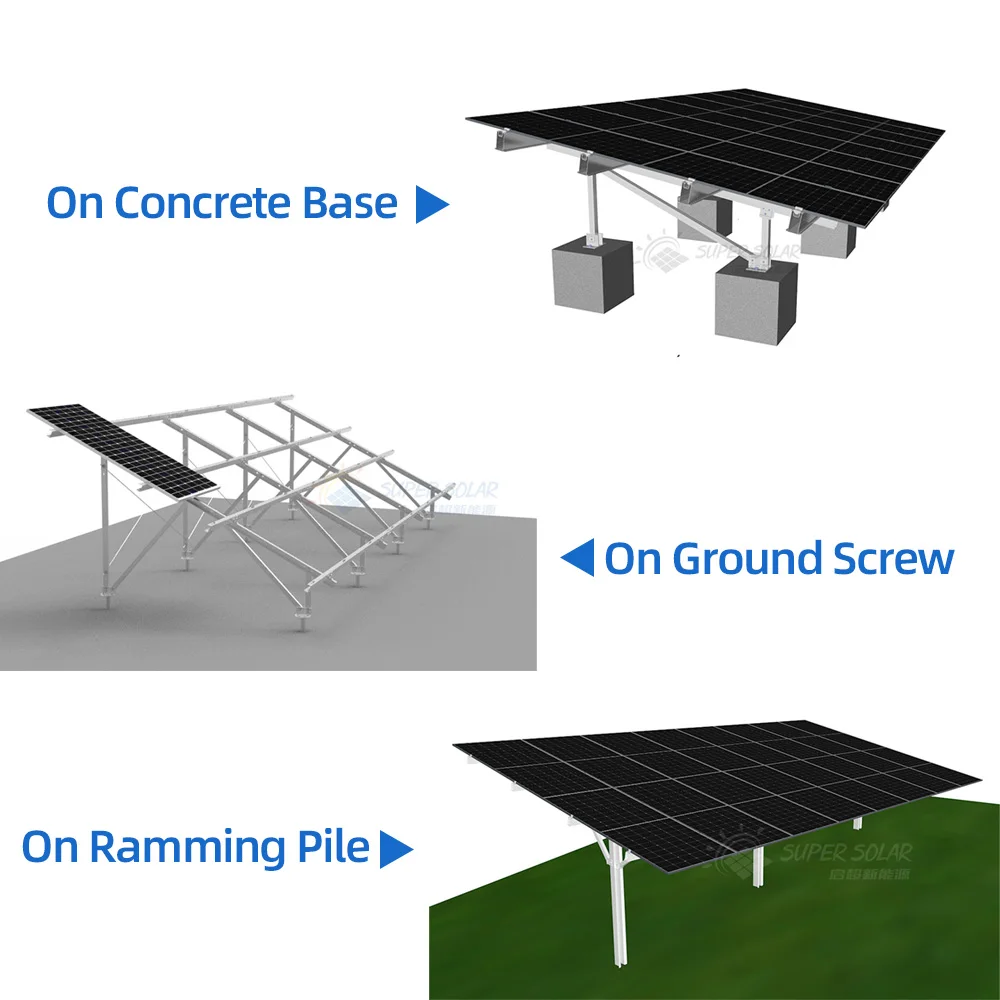

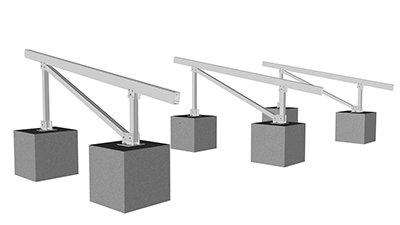

| ▲ On Ramming Pile | ▲ On Concrete Base | ▲ On Ground Screw |
 |
 |
 |

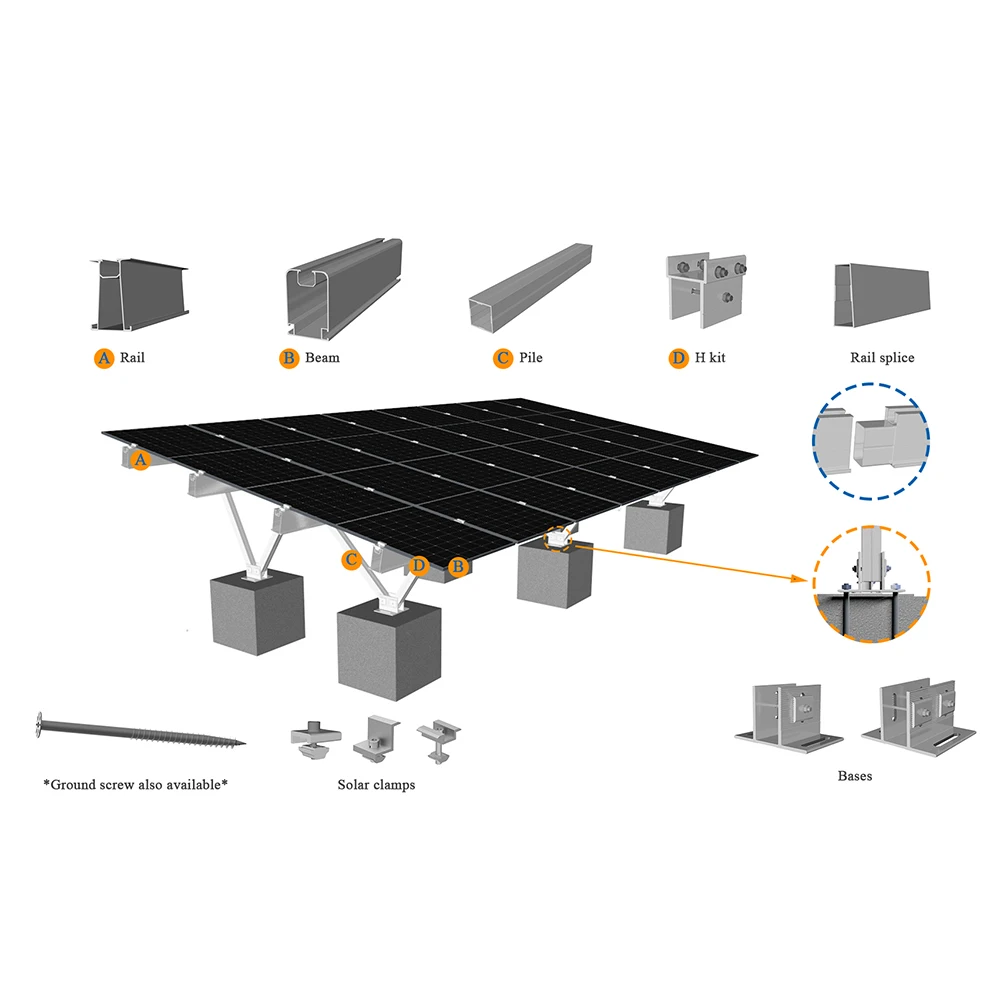

System Overview
Installation
 |
 |
|
Make the concrete blocks or install the ground screws
|
Unfold and fix the pre-asssembled parts |
 |
 |
|
Fix the base on the concrete or ground screw
|
Install the rails with rail clamps
|
 |
 |
| Install the rails with rail clamps | Fix the panels with mid and end clamps |
Please send the inquiry >>
Get PROJECT DESIGN, TECH SPECIFICATION, QUOTATION LIST, SHIPPING SOLUTION...

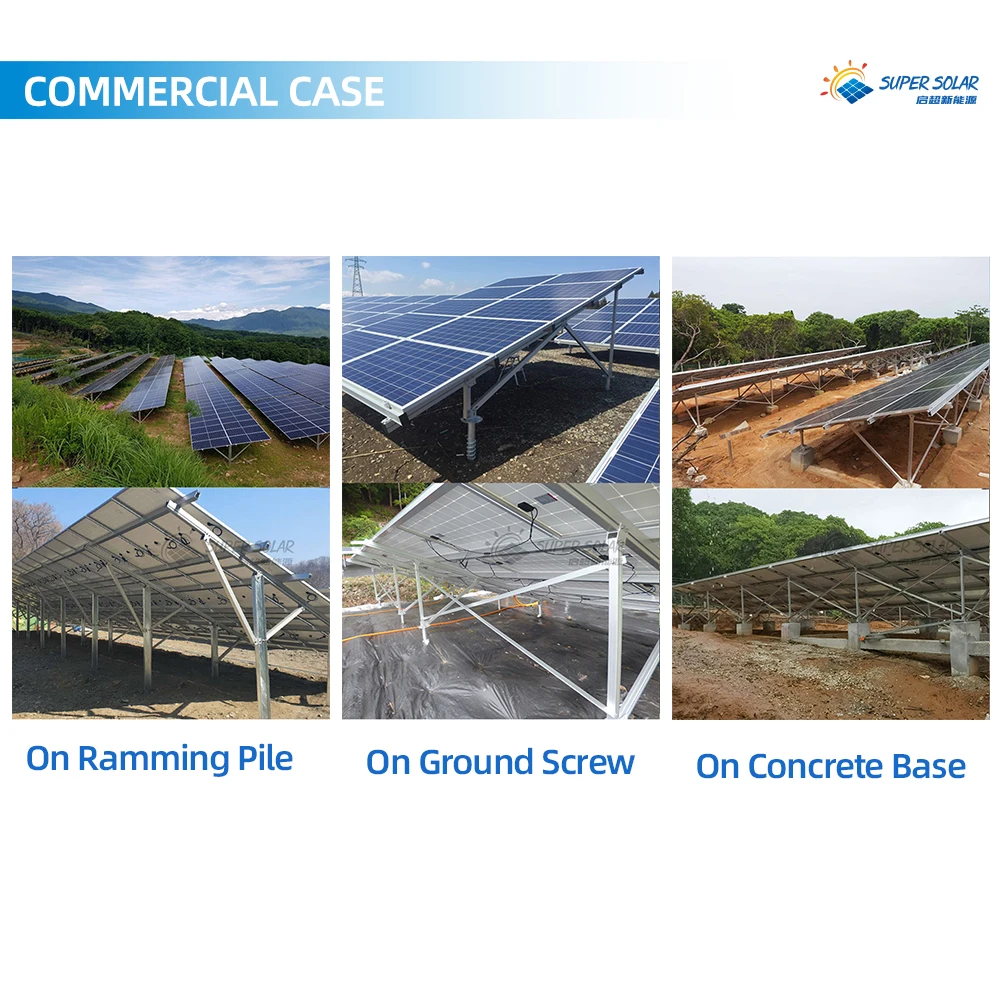

SUPERSOLAR Real Project
 |
 |

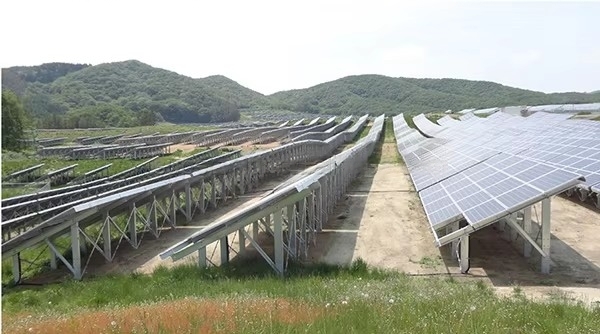

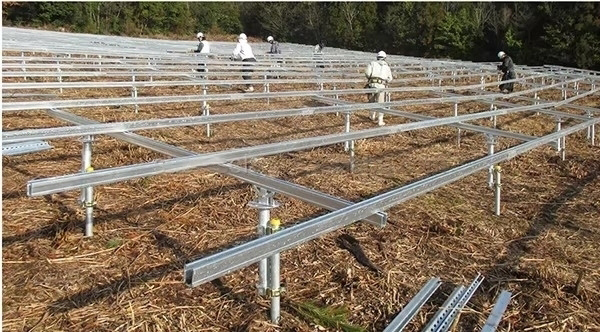

| All hot galvanizing mounting 1.2mw steel solar panel mounting system in Japan | Cost-saving mounting design 25mw mega solar panel mounting system in Japan |
Our Factory
Products Package
Certifications

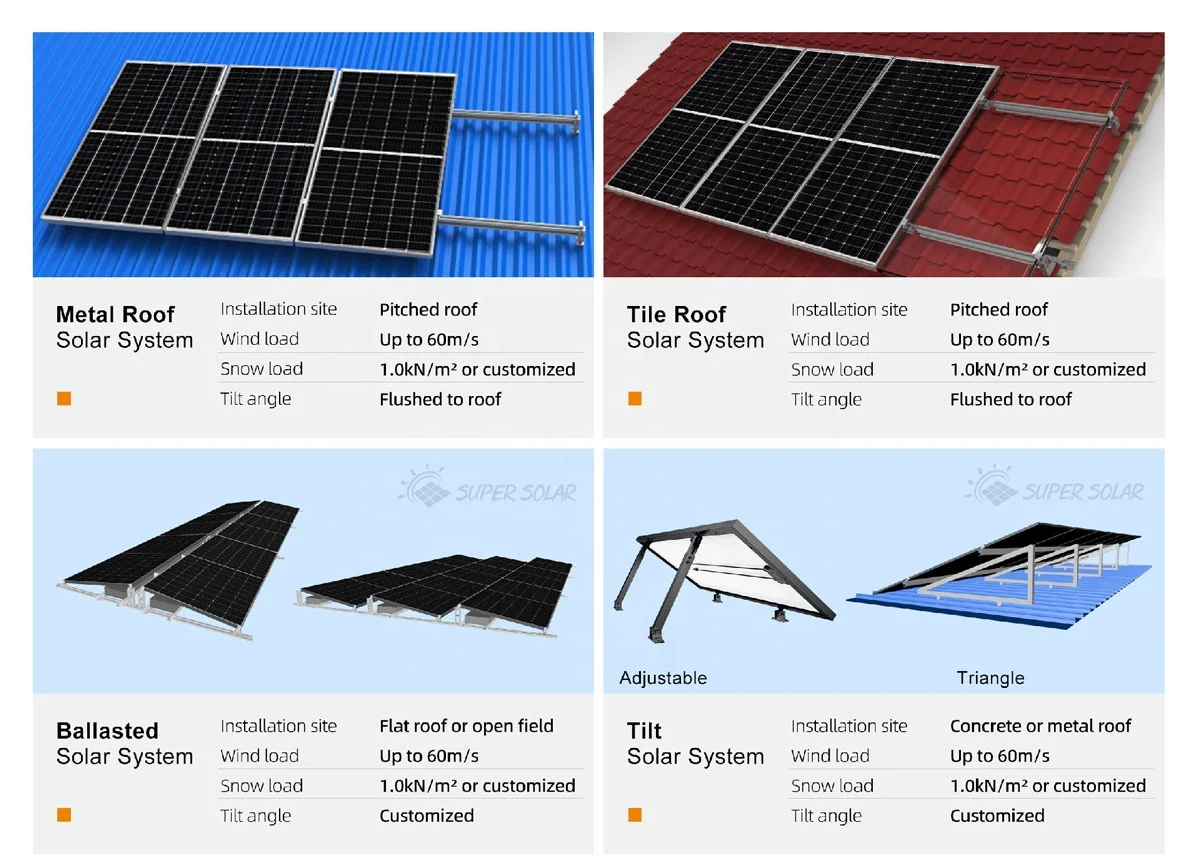

Product Categories
FAQ
Q:Do you support custom photovoltaic service?
A: Yes just tell me your demand ,and our factory will work it out for you
Q: I have a solar power project that needs hooks as a solution, any suggestions?
A:Please tell me the size and arrangement of the solar panels, if there is no arrangement,
please tell me the size of the project, we will design it for you after receiving the information
Q:What is the lead time?
A:For customized service need 14-21 working days;
Q:What is the payment terms ?
A:30% deposit, 70% balance before shipment T/T LC and other payment methods are available
Q:What about the warranty?
A:The warranty period is 12 years.
