Description
|
|
|||||||||||
 |
 |
 |
 |
 |
|||||||

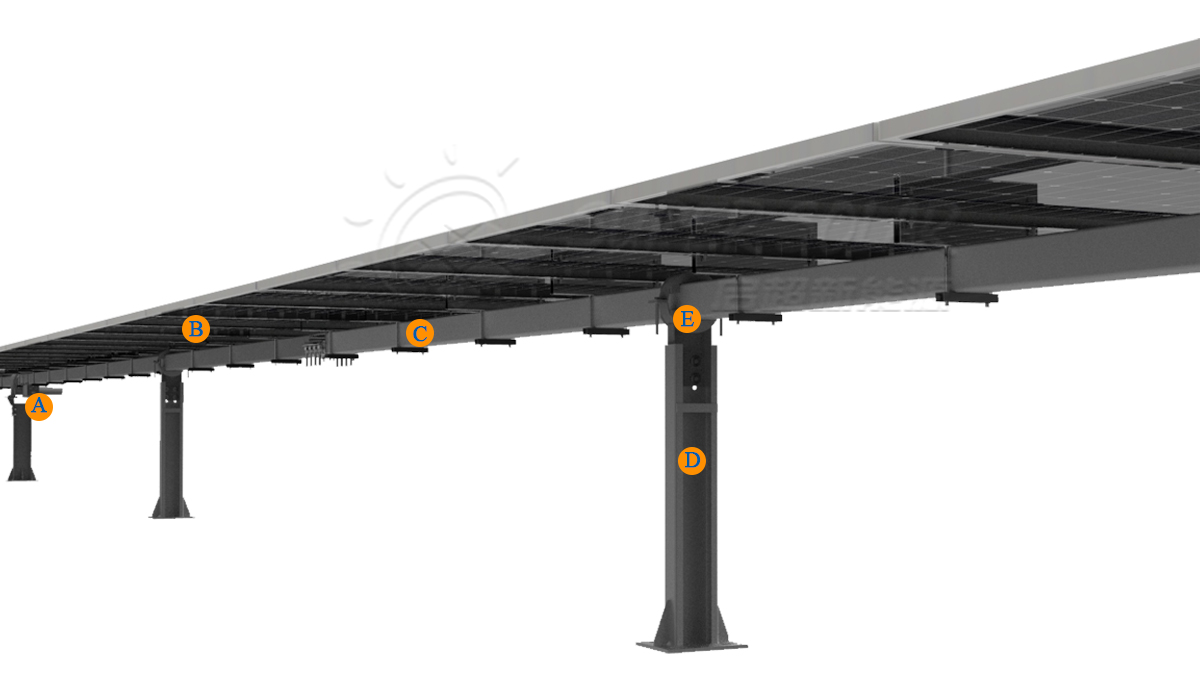

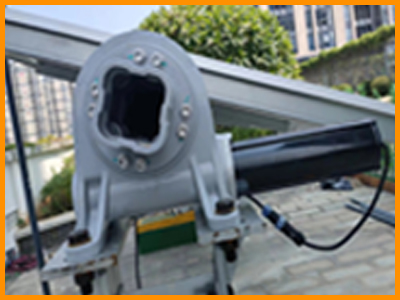

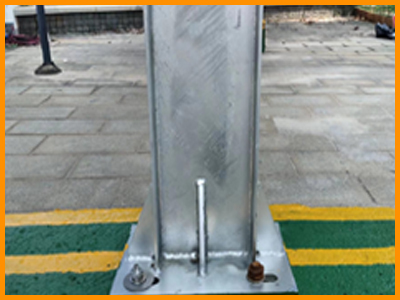

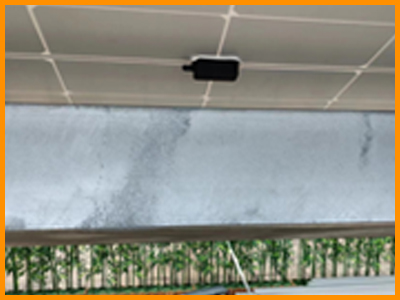

| A. Driving system | B. Purlin | C.Torque Tube | D. Pillar | E. Bearing | |||||||
| Technical Datasheet |

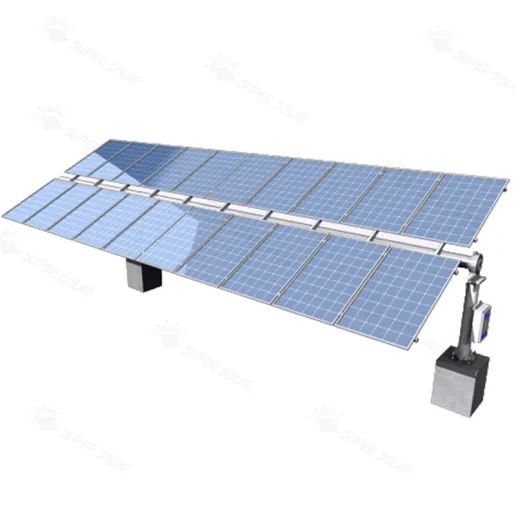

| System type | 1P flat single axis tracking system |
| Single row module power | 54KWp (taking 600W module as an example) |
| Single row module quantity | 90PCS(1P x90) |
| Tracking range | 士60° |
| Tracking accuracy | 士1° |
| Driver quantity | 1 unit |
| Structural materials | Hot dip galvanized steel, ZAM steel |
| Foundation type | Concrete pile, Static pressure pile, PHC pile |
| Pile Quantity/MW | 205pcs (taking 600w module as an example) |
| Module String design | Adapt to various string designs |
| Features & Benefits |
> Increased Energy Output: By following the sun, tracking systems can significantly boost the amount of energy generated compared to stationary panels.
> Improved Efficiency: They maximize the use of available sunlight, making them ideal for areas with high land costs or limited space.
> Better ROI: The increased energy production can lead to a faster return on investment, especially in large-scale solar farms.
