Description

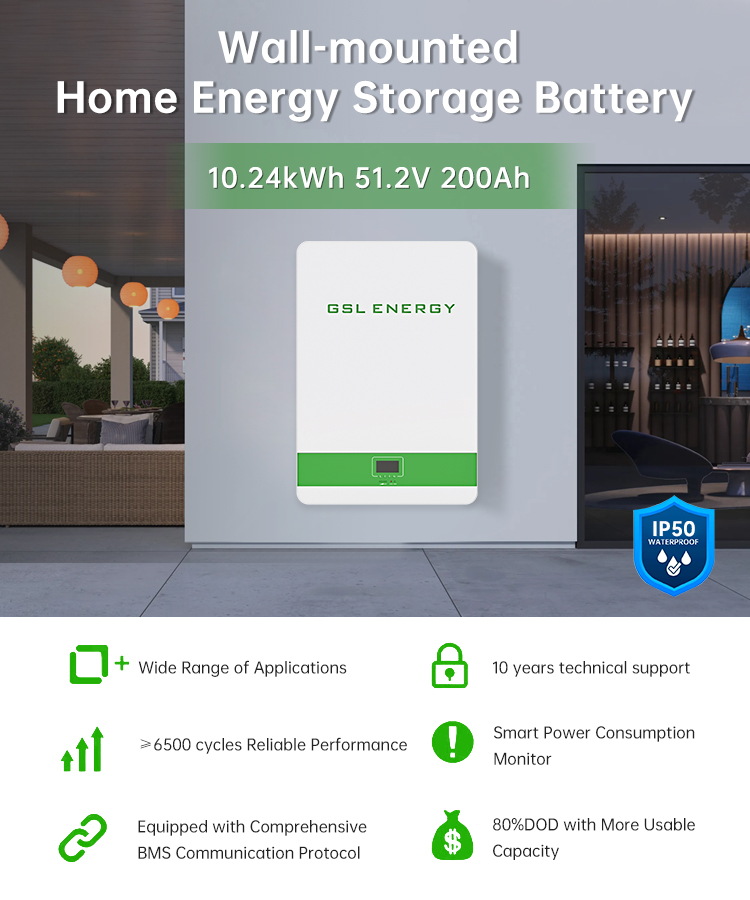

The GSL-051200A-B-GBP2 10 kWh Wall-Mounted Lithium Iron Phosphate Battery is the ideal energy storage solution for residential and commercial applications. Operating at a voltage of 51.2V and a capacity of 200AH, this battery offers reliable and efficient performance from a trusted manufacturer.
Key Features:
- Wi-Fi Connectivity: Monitor and manage your energy usage conveniently through Wi-Fi, providing real-time updates and control from your smart devices.
- Waterproof Design: Built to withstand various environmental conditions, ensuring durability and reliability in any setting.
- 10-Year Warranty: GSL stands by its products with a robust 10-year warranty, reflecting our commitment to quality and customer satisfaction.
- Long Cycle Life: With over 6,500 charge cycles, this battery guarantees longevity and reduces the need for frequent replacements, making it a cost-effective choice.

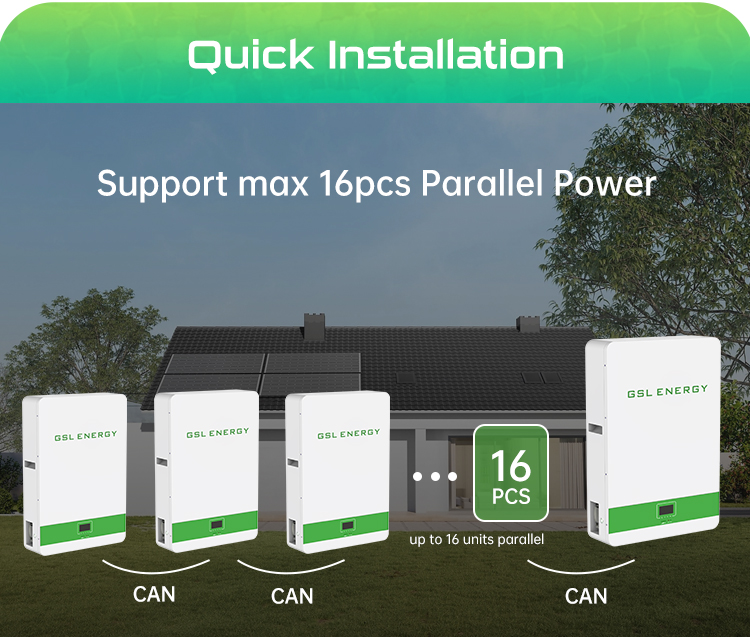

- Scalable Capacity: Easily expand your energy system by connecting up to 16 batteries in parallel, allowing you to meet increasing energy demands as needed.
Whether you are looking to enhance your energy independence or optimize your energy usage, GSL Battery Manufacturer provides sustainable energy solutions. If you need assistance or have any inquiries, please feel free to contact us.
| Battery Specifications | ||||||||||
| Model No | GSL-051200A-B-GBP2 | |||||||||
| Nominal Parameters | ||||||||||
| Battery Chemistry | LiFePO4 | |||||||||
| Voltage | 51.2V | |||||||||
| Operating Voltage | 46-56V | |||||||||
| Capacity | 200Ah | |||||||||
| Energy | 10.24kWh | |||||||||
| Scalability | Max.16pcs in parallel (162kWh) | |||||||||
| Usable Energy | 9.22kWh | |||||||||
| Charge/Discharge Current |
Recommend | 100A | ||||||||
| Max. | 150A | |||||||||
| Peak(2mins,25℃) | 200A | |||||||||
| Basic Parameters | ||||||||||
| Recommend Depth of Discharge | 80% | |||||||||
| Dimension (W/H/D) | 800*550*200mm / 31.5*21.6*7.8 in | |||||||||
| Weight Approximate | 84.5kgs / 186 lbs | |||||||||
| Master LED Indicator | 4 LED (SOC:25%~100%) | |||||||||
| 2 LED (working, alarming, protecting) | ||||||||||
| IP Rating of Enclosur | IP50 | |||||||||
| Working Temperature | Charge:0℃~55℃ Discharge:-20℃~55℃ | |||||||||
| Storage Temperature | 0℃~35℃ | |||||||||
| Humidity | 5%~95% | |||||||||
| Altitude | ≤2000m | |||||||||
| Cycle Life (25±2℃,0.5C/0.5C,80%EOL) |
≥6500 | |||||||||
| Installation | Wallmounted | |||||||||
| Communication Port | CAN2.0, RS485 | |||||||||
| Warranty Period [3] | 10 years | |||||||||
| Certification | CB-IEC62619, CE-EMC, CEI 0-21 UN38.3, MSDS |
|||||||||
