Description

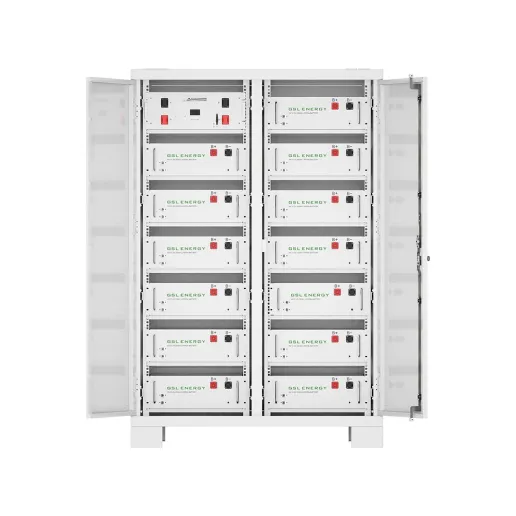

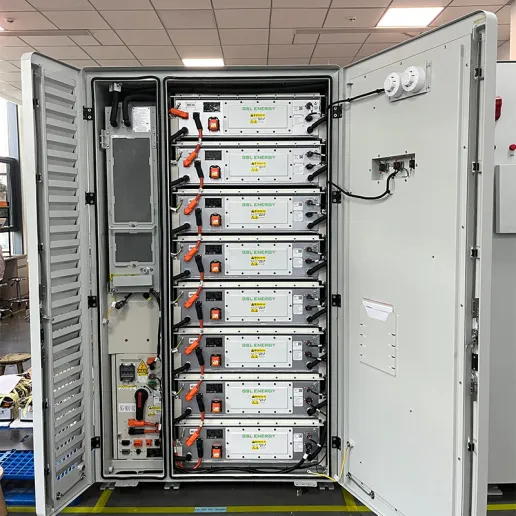

372kWh liquid-cooling high Voltage Energy Storage System(372kWh Liquid Cooling BESS Battery)
Independent temperature control adoption of centralized refrigeration, multistage pipelines, and
co-current flow in parallel flow design facilitates a temperature difference of 3 ℃ for the container.
Flexible deployment
Each outdoor unit integrates a Water Cooling System, a Fire Protection System, and a DC Control System independently in an installation completion design for easy transportation of the complete equipment.
Three-level control architecture
The three-level BMS architecture of General Control, Master Control, and Slave Control is compatible with local EMS functions and mainstream communication protocols.
System Safety
With a DC 5000V withstand voltage without flash-over,multi-layer disconnection protection mechanism IP68 level ingression protection for the Boxed Battery
The system, 1000-hour high-temperature reliability test for the pipeline, and high-level system safety are secured.
Capacity upgrade
As 306 Ah cells were initially adopted in this Power Supply System, 320 Ah cells are recommended for capacity expansion.
Long-term service
Special cells with a standard cycle of 10000 times dedicated to energy storage adopted in the system secure a continuous operation for 10 years.
Multiple fire prevention
The "3+2" fire prevention and control measures include fire protection at the module level + fire protection at the container level, fire protection with gas fire protection with water, combustible gas detection, combustible gas venting, and explosion relief.
| Model No | GSL-BESS-372K |
| Battery Energy Storage | |
|
Single Cell Type
|
LFP 3.2V/280AH |
|
Module Combination
|
1P52S
|
|
System Combination |
8 modules in series
|
|
Capacity (kWh)
|
372.7
|
|
Nominal Voltage (Vdc)
|
1331.2V |
|
Voltage Range (Vdc)
|
1164.8～1497.6V |
|
Charge/Discharge Current
|
140A/0.5C
|
|
Discharge Depth
|
90% DoD |
|
Service Life
|
>10000 cycles@80%DoD
|
|
Thermal Management Mode
|
Liquid cooling technology
|
|
Thermal runaway management-1
|
Aerosol Extinguishing or PFH
|
|
Thermal runaway management-2
|
Water Immersion
|
| General Parameters | |
|
Dimensions (W*D*H) (mm)
|
1300*1300*2340
|
|
Total Weight (kg)
|
3500
|
|
Operation Altitude
|
3000m(>3000m derating)
|
|
Noise Level @1m |
<75 dB(A)
|
|
IP Rating
|
IP55
|
| Operating Temperature | –20°C to 55°C |
| Operating Humidity (RH) | 0 to 95% |
| Storage Conditions | –20°C to 30°C, Up to 95% RH, non-condensing State of Energy (SoE): 50% initial |
| System Characteristic | |
| Communication Interface | CAN, RS485, Wi-Fi |
| Warranty | 10Years |
| Certifications*(pending) | UL1973/UL9540/UL9540A/IEC62619/UN38.3 |
