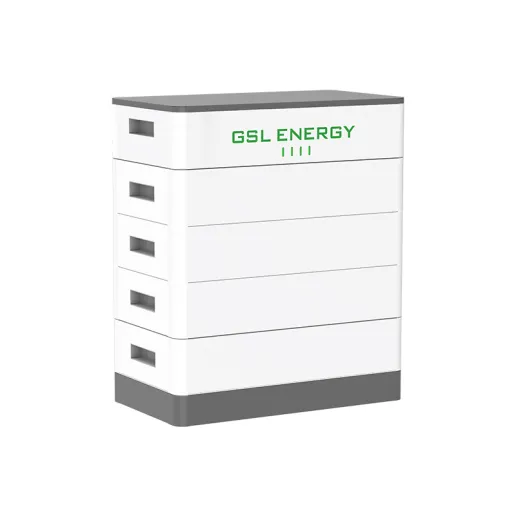

Description
The maximum capacity of a single cluster battery is 3.84kwh supporting 16 clusters in parallel and the maximum capacity can reach 61.44kwh.
Can form a small combination of various energy levels,easy maintenance,plug and use.
Support a variety of communication protocols, support RS485, RS232, CAN, etc
Modular structure for easy installation
Long cycle life:6500+
Intelligent battery management system
LED lights display the parameters of the equipment in real-time
Supports up to 8 battery modules in series
Compatible with mainstream inverters
| Model No | GSL-G3-11.52KW | GSL-G4-15.36KW | GSL-G5-19.20KW | GSL-G6-23.04KW | GSL-G7-26.88KW | GSL-G8-30.72KW |
|
Nominal Capacity
|
11.52kWh | 15.36kWh | 19.20kWh | 23.04kWh | 26.88kWh | 30.72kWh |
|
Cell Matching
|
72S1P
|
96S1P | 120S1P | 144S1P | 168S1P | 192S1P |
|
Nominal Voltage
|
230.4V
|
307.2V | 384V | 460.8V | 537.6V | 614.4V |
| Working Voltage Range |
198-259.2V
|
264-345.6V
|
330-432V
|
396-518.4V | 462-604.8V |
528-691.2V
|
|
Weight
|
157.5kg | 198.5kg | 242.5kg | 285kg | 327.5kg | 370kg |
|
Dimension (WxDxH)
|
680*378*660mm | 680*378*800mm | 680*378*940mm | 680*378*1080mm | 680*378*1220mm | 680*378*1360mm |
|
Battery Type
|
LFP(LiFePO4)
|
|||||
|
Nominal Working Current
|
25A | |||||
|
Communication Port
|
CAN/TCP/IP
|
|||||
|
Working Temperature Rang
|
Charge:0-55°C/Discharge:-20-60°C
|
|||||
|
Waterproof
|
IP20
|
|||||
|
Installation Method
|
Floor-standing
|
|||||
|
Cycle Life
|
10 years
|
|||||
|
Peak Charge/Discharge Current (@25°C,5S)
|
50A
|
|||||
|
Discharge Rate of Module
|
≤6%/month/@25°C
|
|||||
|
Module Series Connection /Module |
3S~8S
|
|||||
|
Parallel Connection
|
5 units in parallel
|
|||||
