Description
1.Voltage and Temperature observation(IEC62619 certified)
2.Reduce electric bill and maximize your solar investment with battery storage
3.Data communication with popular hybrid inverters
4.Market Leading BMS Battery to Maximize Reliability and Longevity
Model:GSL-051100A-B-GBP2
Battery Chemistry:LiFePO4 Battery
Lifespan:6500+ Cycles
Capacity:5.12kWh/10.24kWh/14.34kWh
Certification:CB IEC62619, CE-EMC, MSDS, UN38.3
| MODEL NO | GSL051200A-B-GBP2 | GSL051280A-B-GBP2 | GSL051320A-B-GBP2 | |
| Battery Chemistry | LiFePO4 | |||
|
Capacity (Ah) |
200 | 280 | 320 | |
| Scalability | Max.16pcs in parallel (162kWh) | Max.16pcs in parallel (229kWh) | Max.16pcs in parallel (262kWh) | |
|
Nominal Voltage (V) |
51.2 | |||
| Operating Voltage (V) | 46-56 | |||
|
Energy (kWh) |
10.24 | 14.34 | 16.38 | |
|
Usable Energy (kWh) |
9.22 | 12.91 | 13.10 | |
|
Charge/Discharge Current (A) |
Recommend |
100 | ||
|
Max. |
150 | |||
|
Peak(2mins,25℃) |
200 | |||
| Other Parameter | ||||
| Recommend Depth of Discharge | 80% | |||

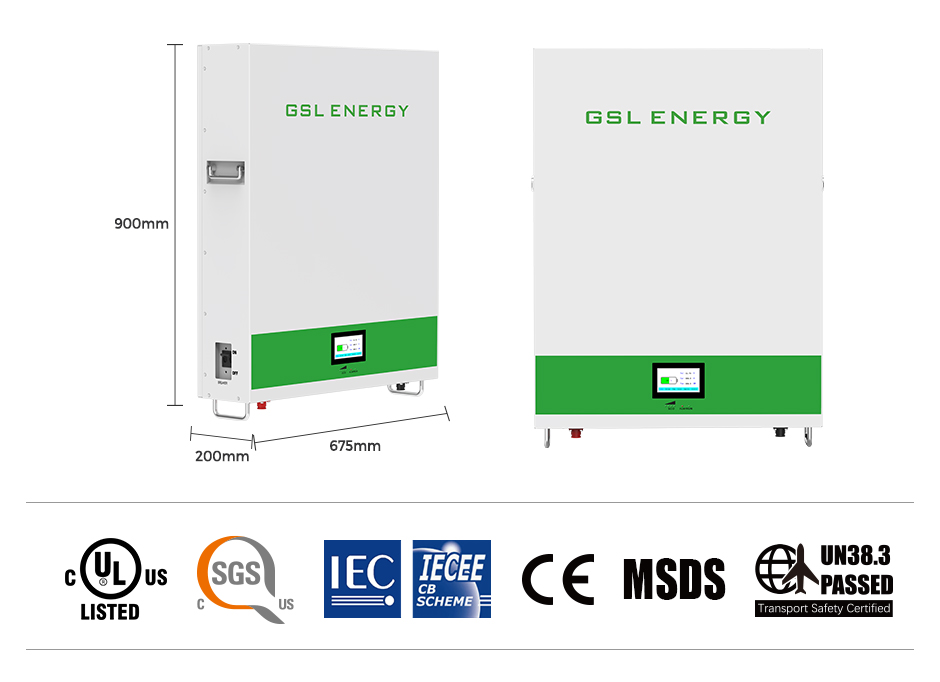

| Dimension (W/H/D,mm) | 550*800*160 | 900*675*200 | 900*675*200 | |
|
Weight Approximate (kg) |
102.50 | 128.50 | 146.50 | |
| Master LED Indicator | 4 LED (SOC:25%~100%) | |||
| 2 LED (working, alarming, protecting) | ||||
|
IP Rating of Enclosur |
IP65 | |||
| Working Temperature | Charge:0℃～55℃ Discharge:-20℃～55℃ | |||
|
Storage Temperature |
0℃～35℃ | |||
| Humidity | 5%~95% | |||
| Altitude | ≤2000m | |||
| Cycle Life (25±2℃,0.5C/0.5C,80%EOL) | ≥6500 | ≥8500 | ||
| Installation | Wallmounted | |||
| Communication Port | CAN2.0, RS485 | |||
| Warranty Period | 10 years | |||
| Certification | IEC-62619, CE-EMC, MSDS, UN38.3 |
UL9540A, UL9540, UL1973, IEC-62619, CE-EMC, MSDS, UN38.3 |
IEC-62619, CE-EMC, MSDS, UN38.3 | |
