Description

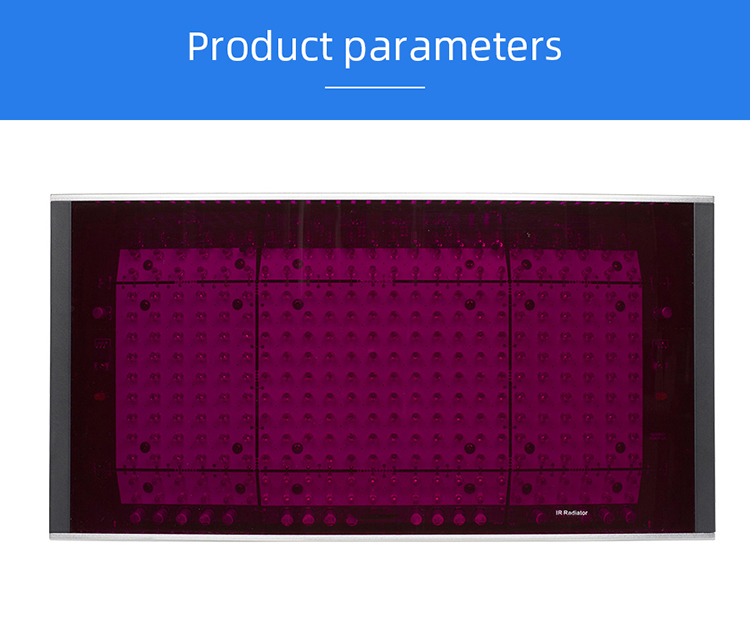

Expand the reach of your IR-controlled devices with the RC-7300 IR Radiator. This powerful device broadcasts IR signals, allowing for seamless control of compatible audio/visual systems from a distance. Perfect for large venues or when direct line-of-sight is limited.
Features
• High security, prevent external interference.
• Suitable for different conference hall
• Automatic level control function (ALC).
• No disturb under daylight lamp
• Easy to operate and save in project cost
• With the most advanced technology
• Elegant configuration in accordance to ergonomics
• Input channel direct function
• Has 4/6/8/10/12CH interpreter’s voice for record
• Installed in a 19-inch frame
| Model NO. | RC-7300 |
| Frequency Band | 1.7 – 4.0MHz |
| Max. IR Output Power | 25W |
| Max. Coverage Range | 30m |
| Angle of Half Intensity | ±22° |
| RF Output Impedance | 50 ohms |
| Channel Separation | >70dB |
| RF Output Power Level | 700mV |
| RF Output Impedance | 50 ohms |
| RF Input Voltage | 100-2000mV |
| Power Consumption | 55W / Stand-by 8W |
| Power Supply | AC110V/240V/50Hz~60Hz |
