Description
Key Features
。Pure sine wave MPPT solar inverter
。High PV input voltage range
。Built-in 100A MPPT solar charger
。With Touch Buttons
。Built-in anti-dusk kit for harsh environment
。Support lithium iron battery
。Battery equalization function to optimize battery performance and extend lifecycle
。Reserved communication port(RS485, CAN-BUS or RS232) for BMS(Optional)
Technical Specifications
Rated Power: 5.5KW/5500W
Battery Voltage: 48V
AC Input/Output Data:
Rated AC Input/Output Voltage: 230V
Efficiency (Peak): up to 93.5%
Transfer Time: 10 ms (For Personal Computers):20 ms (For Home Appliances)
Waveform : Pure sine wave
Solar Charger & AC Charger Data:
Maximum PV Array Open Circuit Voltage: 500V
Maximum PV Array Power: 5500W
MPPT Range @ Operating Voltage: 120~450V
Maximum Solar Charge Current: 100A
Maximum AC Charge Current: 80A
Maximum Charge Current: 100A
Physical:
Dimension, DxWxH : 503*302*120mm
Net Weight: 10.6kgs
Communication Interface: USB/RS232
Environment
Humidity: 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature: -10°C to 50°C
Storage Temperature: -15°C to 60°C

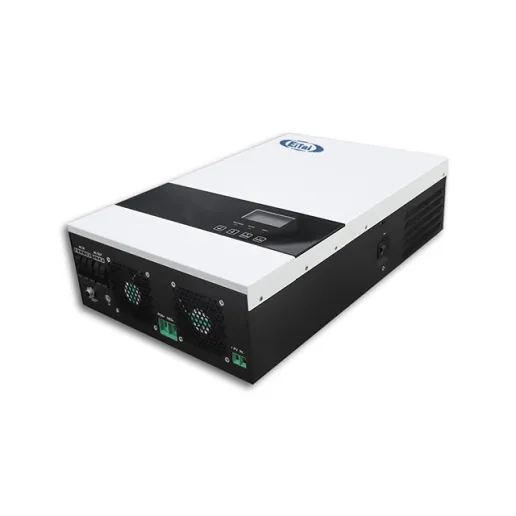

This is a multi-function inverter/charger; combining varies of functions of inverter, solar charger and battery charger. Supply uninterruptible electric energy to loads. It’s comprehensive LCD display allowed user setting the varies date according to user’s requirements, such as battery charging current, AC/solar charger priority, and setting different input voltage based on different applications.
